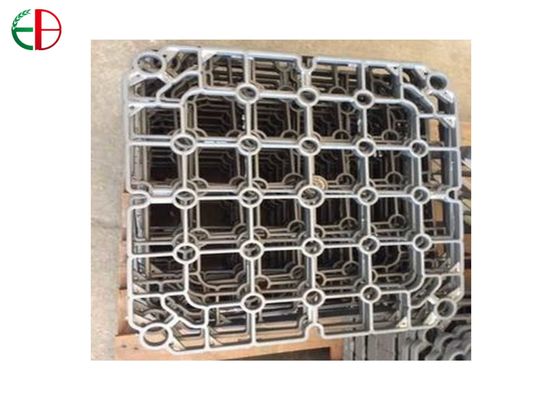

Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245

MOQ: 1 piece
Price: USD5~28/kg
Standard Packaging: Pallets
Delivery Period: It depends on the quantity to be ordered.
Payment Method: by T/T or L/C, Western Union
Supply Capacity: 10000 tons per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Eternal Bliss
Certification
ISO9001-2008
Model Number
EB22245
Material Grade:
ASTM A297 HU
Service Life:
12 Months In Air Quenching
Work Temperature:
Up To 1000℃
Application:
Auto, Precision Gear, Heat-treating Industries
Certification:
ISO9001
Cast Process:
Wax Lost Cast Process, EPC Cast Process, Sand Cast Process，silica Sol Cast Process
Highlight:

charging material baskets

,

steel charging basket

Product Description

Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245

Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245

Quality Level: As per National Standard & International Standards.

Special Features:

1. We can make High Temperature Material Trays Fixture with Lost Wax Process & EPC process & Sand Cast Process.

2. We can supply finished High Temperature Material Trays Fixture with heat-treatment and machining process.

3. EB Alloy is a professional manufacturer of high alloy castings and forgings with 18-year history!!Our main products include corrosion, wear & heat-resistant castings & forgings.



Production Process:Lost Wax Process & EPC process & Sand Process, including machining process.



Material Grade:



Composition

(%)

 C Si Mn Cr Ni S P

1.4823

GX40CrNiSi27-4

 0.35~0.50 1.0~2.5 ≦1.50 25.0-28.0 3.5-5.5 ≦0.03 ≦ 0.035

1.4825

GX25CrNiSi18-9

 0.15-0.30 1.0~2.5 ≦1.50 17.0-19.0 8.0-10.0 ≦0.03 ≦ 0.035

1.4826

GX40CrNiSi22-9

 0.30-0.50 1.0~2.5 ≦1.50 21.0-23.0 9.0-11.0 ≦0.03 ≦ 0.035

1.4832

GX25CrNiSi20-14

 0.15-0.30 1.0~2.5 ≦1.50 19.0-21.0 13.0-15.0 ≦0.03 ≦ 0.035

1.4837

GX40CrNiSi25-12

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 11.0-14.0 ≦0.03 ≦ 0.035

1.4848

GX40CrNiSi25-20

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 19.0-21.0 ≦0.03 ≦ 0.035

1.4865

GX40CrNiSi38-18

 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4857

GX40CrNiSi35-25

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 34.0-36.0 ≦0.03 ≦ 0.035

1.4855

GX30CrNiSiNb24-24

 0.30-0.40 0.5-2.0 ≦1.50 23.0-25.0 23.0-25.0 ≦0.03 ≦ 0.035

1.4849

GX40CrNiSiNb38-18

 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4852

GX40CrNiSiNb35-25

 0.35-0.45 1.0~2.5 ≦1.50 24.0-26.0 33.0-35.0 ≦0.03 ≦ 0.035
G-CoCr28 0.10-0.20 1.0~2.5 ≦1.50 27.0-30.0 - ≦0.03 ≦ 0.035
G-CoCr28W 0.35-0.50 0.5-2.0 ≦1.50 27.0-30.0 47.0-50.0 ≦0.03 ≦ 0.035

Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245

Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245



Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245



Production Process

Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245



Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show Charging Base Trays For Carbonitriding Furnaces with Economical EPC Cast Process EB22245



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.





Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172



E-mail: cast@ebcastings.com; ebcasting@163.com



Skype ID:julia.zhu26

QQ: 217 039 6403

www.ebcastings.com

Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
