Vacuum Carburizing Furnace Heat treatment Grid Plates High Temperature Alloy Steel1.4849 EB22254
heat treatment furnace baskets
,charging material baskets
Product Description

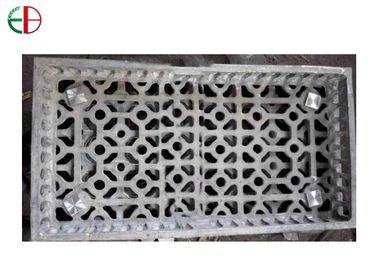

Vacuum Carburizing Furnace Heattreatment Grid Plates High Temperature Alloy Steel 1.4849 EB22254
Quality Level: As per National Standard & International Standards: GB/T 20878,DIN 17440,DIN 17224, AISI,ASTM,JIS SUH35,NF A35- 572/584,BS970,BS1449,ISO 683/13.
Special Features:
1. The cast process we used to make the trays is investment cast process.
2. The size for base trays is 1170 x 680mm. There are three parts to combine the whole base trays.
3. We use the material 1.4849 for base trays, and the working temperature is up to 1200℃.
Production Process: Precison cast Process & EPC process & Sand Process, including machining process.
Material Grade:
|
Composition (%) |
C | Si | Mn | Cr | Ni | S | P |
|
1.4823 GX40CrNiSi27-4 |
0.35~0.50 | 1.0~2.5 | ≦1.50 | 25.0-28.0 | 3.5-5.5 | ≦0.03 | ≦ 0.035 |
|
1.4825 GX25CrNiSi18-9 |
0.15-0.30 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 8.0-10.0 | ≦0.03 | ≦ 0.035 |
|
1.4826 GX40CrNiSi22-9 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 21.0-23.0 | 9.0-11.0 | ≦0.03 | ≦ 0.035 |
|
1.4832 GX25CrNiSi20-14 |
0.15-0.30 | 1.0~2.5 | ≦1.50 | 19.0-21.0 | 13.0-15.0 | ≦0.03 | ≦ 0.035 |
|
1.4837 GX40CrNiSi25-12 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 11.0-14.0 | ≦0.03 | ≦ 0.035 |
|
1.4848 GX40CrNiSi25-20 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 19.0-21.0 | ≦0.03 | ≦ 0.035 |
|
1.4865 GX40CrNiSi38-18 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 36.0-39.0 | ≦0.03 | ≦ 0.035 |
|
1.4857 GX40CrNiSi35-25 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 34.0-36.0 | ≦0.03 | ≦ 0.035 |
|
1.4855 GX30CrNiSiNb24-24 |
0.30-0.40 | 0.5-2.0 | ≦1.50 | 23.0-25.0 | 23.0-25.0 | ≦0.03 | ≦ 0.035 |
|
1.4849 GX40CrNiSiNb38-18 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 36.0-39.0 | ≦0.03 | ≦ 0.035 |
|
1.4852 GX40CrNiSiNb35-25 |
0.35-0.45 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 33.0-35.0 | ≦0.03 | ≦ 0.035 |
| G-CoCr28 | 0.10-0.20 | 1.0~2.5 | ≦1.50 | 27.0-30.0 | - | ≦0.03 | ≦ 0.035 |
| G-CoCr28W | 0.35-0.50 | 0.5-2.0 | ≦1.50 | 27.0-30.0 | 47.0-50.0 | ≦0.03 | ≦ 0.035 |




Production Process


1. 18-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
