SAG Mill Machine Parts Wear Resistant Liners Cylinder Corner Chrome Moly Alloy Steel

MOQ: 700KG
Price: USD2.1~3.5/kg
Standard Packaging: Pallets
Delivery Period: It depends on the quantity to be ordered.
Payment Method: by T/T or L/C, Western Union
Supply Capacity: 10000 tons per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Eternal Bliss
Certification
ISO9001-2008
Model Number
EB17018
Heat-treatment::
Normalizing + Tempering
Impact Value:
≥60J
Microstructure::
Pearlitical
Impact Value::
≥60J
Size Tolerance:
CT13
Material Grade:
AS2074 L2B
Hardness:
HB310-380
Surface Treatment:
Shot Blasting
Mill Liner Type:
Sag Mill Liner
Highlight:

wear resistant liners

,

ball mill liner replacement

Product Description

SAG Mill Machine Parts Wear Resistant Liners Cylinder Corner Chrome Moly Alloy Steel AS2074 L2C EB17018

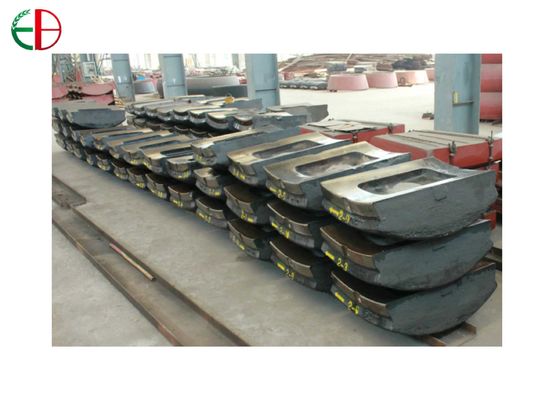

SAG Mill Machine Parts Wear Resistant Liners Cylinder Corner Chrome Moly Alloy Steel 0

SAG mill liners development draws primarily on practical experience from SAG milling operations supported by computer-based modeling of charge motion in SAG mills and on established good design practice. Liner design needs to respond to the process aspects of mill liner action that are critical to good SAG mill performance, i.e.

The impact of shell liners on the grinding action and of grates and pulp lifters on pulp discharge.

In recent years, the trend in large SAG mills has been to use wide-spaced shell lifters with large lifter face angles, primarily to reduce packing and ball/liner damage, and to use larger, hence fewer, mill liner parts to reduce downtime at liner change-outs.

Detailed Description:

Material Grade:Cr-Mo Alloy Steel;

Quality Level: As per National Standard & International Standards.

Production Process: Sand Process



Special Features:



1.The material of SAG mill liners are low C or high C Cr-Mo Alloy steel,which depends on the specific working condition of the SAG mill.

2.The hardness of AS2074 L2B is HB310-HB380.

3. We can make big size SAG mill liner castings with Sodium Silicate Sand Process & Resin Sand Process.

4. We can supply alloy steel SAG mill liner castings with proper heat-treatment process.

5. We can produce Cr-Mo alloy steel SAG Mill castings as per AS2074 L2B, L2C, GB/T 26651-2011.

6. Metallographic structure of AS2074 L2B Steel is Pearlitic.

7. Chemical Composition

Material Grade C Si Mn P S Cr Mo
AS2074 L2B 0.55-0.65 <0.75 0.50-1.00 <0.06 <0.06 0.80-1.50 0.20-0.40
AS 2074 L2C 0.70-0.90 <0.75 0.50-1.20 <0.06 <0.06 1.30-2.40 0.20-0.40

SAG Mill Machine Parts Wear Resistant Liners Cylinder Corner Chrome Moly Alloy Steel 1
SAG Mill Machine Parts Wear Resistant Liners Cylinder Corner Chrome Moly Alloy Steel 2





Production Process

Step 1: Getting orders.



Step 2: Process design by technical department



Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)



Step 13: Packing



Step 14: Shipping



SAG Mill Machine Parts Wear Resistant Liners Cylinder Corner Chrome Moly Alloy Steel 3



SAG Mill Machine Parts Wear Resistant Liners Cylinder Corner Chrome Moly Alloy Steel 4

1.18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show SAG Mill Machine Parts Wear Resistant Liners Cylinder Corner Chrome Moly Alloy Steel 5



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.





Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172



E-mail: cast@ebcasting.com； ebcastings@163.com





Skype ID:julia.zhu26

QQ: 217 039 6403

www.ebcastings.com

Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
