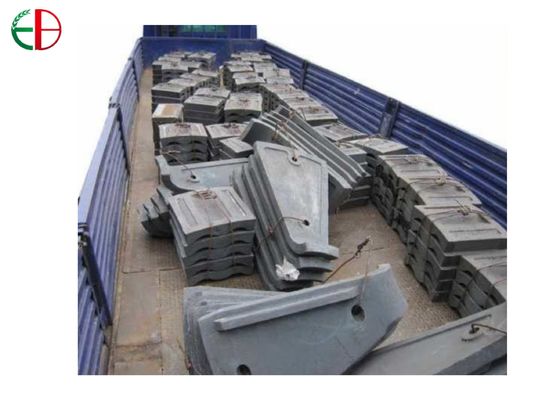

Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005

Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005
Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005

Large Image :  Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB2005
Payment & Shipping Terms:
Minimum Order Quantity: 700kg
Price: USD 1.6~4.0/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 tons per year
Detailed Product Description
Application: Coal Pulveriser Process: Sand Cast
Material Grade: FED14 Surface Treatment: Shot Blasting
Service Life In Coal Mills: Around 8 Years Service Life In Cement Mills: Around 4 Years
Copper Mills: Around 12 Months Hardness: ≥HRC55
High Light:

grinding mill liners

,

rod mill liners

Ball Mill Liners for Coal Pulveriser FED14 Cr12 Alloy Steel Lining Casting EB2005

Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 0

Material Grade:

1. Cr-Mo Alloy Steel: ZG50Cr5Mo,ZG60Cr6Mo,Cr12Mo :Hardness:≥HRC48,

Impact value:≥25J.



2. High Cr white iron:BTMCr15Mo,BTMCr20Mo,BTMCr26Mo:Hardness:≥HRC56,

Impact value:≥5J.


3. Ni-hard White Iron: AS2027 NiCr2-500,AS2027 NiCr1-550,AS2027 NiCr4-500,AS2027 NiCr4-600,AS2027 NiCr4-630AS2027 NiCr2-500,AS2027 NiCr1-550,AS2027 NiCr4-500,AS2027 NiCr4-600,AS2027 NiCr4-630



4. High Mn Steel:ASTM A128 Grade C, Grade D, Grade E-1,Grade E-2.Grade F,Grade B,Grade B-1,Grade B-2,Grade B-3,Grade B-4,Grade A.



Quality Level: As per National Standard & International Standards.

Production Process: Sand ProcessWith proper heat-treatment(quenching and tempering) process to achieve ideal hardness and impact value .



Special Features:

1. We make Cr-Mo Alloy steel and high Cr white iron castings with Sodium Silicate Sand Process and Resin Sand Process.

2. We supply finished alloy steel castings with heat-treatment and machining process.

3. We can produce Alloy Cr-Mo Steel and White Iron castings as per GB/T26651,GB/T 8263-1999,AS2074,AS2027,DIN 1695, AISI,ASTM,JIS G 5153,NF A32401,BS4844.

4. We can recommend suitable material grades of wear parts for you as per your specific working condition.

5.Chemistry Standard for Ni-hard White Iron Materials.

ISO 21988/JN/ HBW C Si Mn P S Ni Cr
HBW480Cr2 480 2.5-3.0 0.8 0.8 0.10 0.10 3.0-5.5 1.5-3.0
HBW500Cr9 500 2.4-2.8 1.5-2.2 0.2-0.8 0.06 0.06 4.0-5.5 8.0-10.0
HBW510Cr2 510 30.-3.6 0.8 0.8 0.10 0.10 3.0-5.5 1.5-3.0
HBW555Cr9 555 2.5-3.5 1.5-2.5 0.3-0.8 0.08 0.08 4.5-6.5 8.0-10.0
HBW630Cr9 630 3.2-3.6 1.5-2.2 0.2-0.8 0.06 0.06 4.0-5.5 8.0-10.0



Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 1

Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 2

Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 3

Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 4

Production Process

Step 1: Getting orders.



Step 2: Process design by technical department



Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)



Step 13: Packing



Step 14: Shipping

Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 5



Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 6

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show Coal Pulveriser Ball Mill Liners FED14 Cr12 Alloy Steel Lining Casting EB 2005 7



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.
