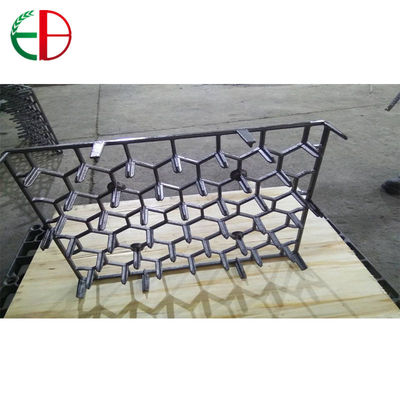

Investment Cast Heat Treatment Fixtures Heat Resistant Tray For Furnace

MOQ: 20kg
Price: USD10~20/kg
Standard Packaging: Pallets
Delivery Period: It depends on the quantity to be ordered.
Payment Method: by T/T or L/C, Western Union
Supply Capacity: 5000 tons per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Eternal Bliss
Certification
ISO9001-2008
Model Number
EB22177
Highlight:

charging material baskets

,

steel charging basket

Product Description



Investment Cast Heat Resistant Tray for Furnace EB13093

Investment Cast Heat Treatment Fixtures Heat Resistant Tray For Furnace

Quality Level: As per National Standard & International Standards.

Special Features:

1. We can make High Temperature Material Trays Fixture with Lost Wax Process & EPC process & Sand Cast Process.

2. We can supply finished High Temperature Material Trays Fixture with heat-treatment and machining process.

3. We can produce heat steel castings as per GB/T 20878,DIN 17440,DIN 17224, AISI,ASTM,JIS SUH35,NF A35- 572/584,BS970,BS1449,ISO 683/13.



Production Process:Lost Wax Process & EPC process & Sand Process, including machining process.

Quality Level: As per National Standard & International Standards.

Material Grade:



Composition

(%)

 C Si Mn Cr Ni S P

1.4823

GX40CrNiSi27-4

 0.35~0.50 1.0~2.5 ≦1.50 25.0-28.0 3.5-5.5 ≦0.03 ≦ 0.035

1.4825

GX25CrNiSi18-9

 0.15-0.30 1.0~2.5 ≦1.50 17.0-19.0 8.0-10.0 ≦0.03 ≦ 0.035

1.4826

GX40CrNiSi22-9

 0.30-0.50 1.0~2.5 ≦1.50 21.0-23.0 9.0-11.0 ≦0.03 ≦ 0.035

1.4832

GX25CrNiSi20-14

 0.15-0.30 1.0~2.5 ≦1.50 19.0-21.0 13.0-15.0 ≦0.03 ≦ 0.035

1.4837

GX40CrNiSi25-12

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 11.0-14.0 ≦0.03 ≦ 0.035

1.4848

GX40CrNiSi25-20

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 19.0-21.0 ≦0.03 ≦ 0.035

1.4865

GX40CrNiSi38-18

 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4857

GX40CrNiSi35-25

 0.30-0.50 1.0~2.5 ≦1.50 24.0-26.0 34.0-36.0 ≦0.03 ≦ 0.035

1.4855

GX30CrNiSiNb24-24

 0.30-0.40 0.5-2.0 ≦1.50 23.0-25.0 23.0-25.0 ≦0.03 ≦ 0.035

1.4849

GX40CrNiSiNb38-18

 0.30-0.50 1.0~2.5 ≦1.50 17.0-19.0 36.0-39.0 ≦0.03 ≦ 0.035

1.4852

GX40CrNiSiNb35-25

 0.35-0.45 1.0~2.5 ≦1.50 24.0-26.0 33.0-35.0 ≦0.03 ≦ 0.035
G-CoCr28 0.10-0.20 1.0~2.5 ≦1.50 27.0-30.0 - ≦0.03 ≦ 0.035
G-CoCr28W 0.35-0.50 0.5-2.0 ≦1.50 27.0-30.0 47.0-50.0 ≦0.03 ≦ 0.035

Investment Cast Heat Treatment Fixtures Heat Resistant Tray For Furnace

Investment Cast Heat Treatment Fixtures Heat Resistant Tray For FurnaceInvestment Cast Heat Treatment Fixtures Heat Resistant Tray For Furnace



Investment Cast Heat Treatment Fixtures Heat Resistant Tray For FurnaceInvestment Cast Heat Treatment Fixtures Heat Resistant Tray For Furnace



Production Process

Step 1: Getting orders.



Step 2: Process design by technical department



Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)



Step 13: Packing



Step 14: Shipping







Investment Cast Heat Treatment Fixtures Heat Resistant Tray For Furnace

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show Investment Cast Heat Treatment Fixtures Heat Resistant Tray For Furnace



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.





Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172



E-mail: ebcasting@126.com



Skype ID:julia.zhu26

QQ: 217 039 6403

www.ebcastings.com

Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
