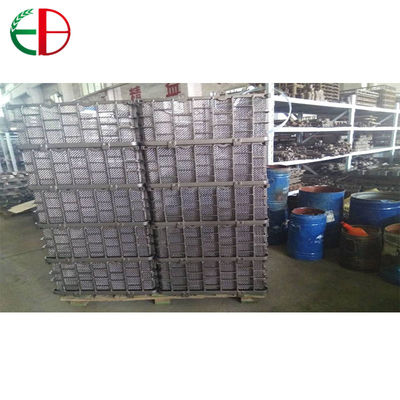

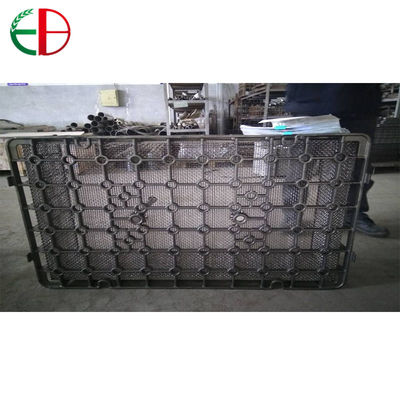

Heat Resistance Heat Treatment Fixtures Casting Iron Basket Of Stainless Steel
Heat Resistance Heat Treatment Fixtures Casting Iron Basket Of Stainless Steel
Heat Resistance Heat Treatment Fixtures Casting Iron Basket Of Stainless Steel
Brand Name
Eternal Bliss
PRODUCT MODEL
EB22096
certificate
ISO9001-2008
country of origin
China
MOQ
1 piece
unit price
USD5~16/kg
payment method
by T/T or L/C
Supply Capacity
5000 tons per year
Product Summary
Heat Resistant Heat Treatment Fixtures Casting Iron Basket EB22096 1.Quality Level: As per National Standard & International Standards. 2.Special Features: We can make High Temperature Material Trays Fixture with Lost Wax Process & EPC process & Sand Cast Process.And supply finished High Temperature ...
Product Details
Highlight:
heat treatment furnace baskets
,charging material baskets
Product Name:
Heat Treatment Fixtures
Material:
Stainless Steel
Packing:
Wooden
Minimum Order Quantity:
20kg
Price:
USD10~20/kg
Supply Ability:
5000 Tons Per Year
Product Description
Heat Resistant Heat Treatment Fixtures Casting Iron Basket EB22096
1.Quality Level: As per National Standard & International Standards.
2.Special Features:
We can make High Temperature Material Trays Fixture with Lost Wax Process & EPC process & Sand
Cast Process.And supply finished High Temperature Material Trays Fixture with heat-treatment and
machining process.We also can produce heat steel castings as per GB/T 20878,DIN 17440,DIN 17224,
AISI,ASTM,JIS SUH35,NF A35- 572/584,BS970,BS1449,ISO 683/13.
3.Production Process:Lost Wax Process & EPC process & Sand Process, including machining process.
4.Quality Level: As per National Standard & International Standards.
5.Material Grade:
|
Composition (%) |
C | Si | Mn | Cr | Ni | S | P |
|
1.4823 GX40CrNiSi27-4 |
0.35~0.50 | 1.0~2.5 | ≦1.50 | 25.0-28.0 | 3.5-5.5 | ≦0.03 | ≦ 0.035 |
|
1.4825 GX25CrNiSi18-9 |
0.15-0.30 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 8.0-10.0 | ≦0.03 | ≦ 0.035 |
|
1.4826 GX40CrNiSi22-9 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 21.0-23.0 | 9.0-11.0 | ≦0.03 | ≦ 0.035 |
|
1.4832 GX25CrNiSi20-14 |
0.15-0.30 | 1.0~2.5 | ≦1.50 | 19.0-21.0 | 13.0-15.0 | ≦0.03 | ≦ 0.035 |
|
1.4837 GX40CrNiSi25-12 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 11.0-14.0 | ≦0.03 | ≦ 0.035 |
|
1.4848 GX40CrNiSi25-20 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 19.0-21.0 | ≦0.03 | ≦ 0.035 |
|
1.4865 GX40CrNiSi38-18 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 36.0-39.0 | ≦0.03 | ≦ 0.035 |
|
1.4857 GX40CrNiSi35-25 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 34.0-36.0 | ≦0.03 | ≦ 0.035 |
|
1.4855 GX30CrNiSiNb24-24 |
0.30-0.40 | 0.5-2.0 | ≦1.50 | 23.0-25.0 | 23.0-25.0 | ≦0.03 | ≦ 0.035 |
|
1.4849 GX40CrNiSiNb38-18 |
0.30-0.50 | 1.0~2.5 | ≦1.50 | 17.0-19.0 | 36.0-39.0 | ≦0.03 | ≦ 0.035 |
|
1.4852 GX40CrNiSiNb35-25 |
0.35-0.45 | 1.0~2.5 | ≦1.50 | 24.0-26.0 | 33.0-35.0 | ≦0.03 | ≦ 0.035 |
| G-CoCr28 | 0.10-0.20 | 1.0~2.5 | ≦1.50 | 27.0-30.0 | - | ≦0.03 | ≦ 0.035 |
| G-CoCr28W | 0.35-0.50 | 0.5-2.0 | ≦1.50 | 27.0-30.0 | 47.0-50.0 | ≦0.03 | ≦ 0.035 |
