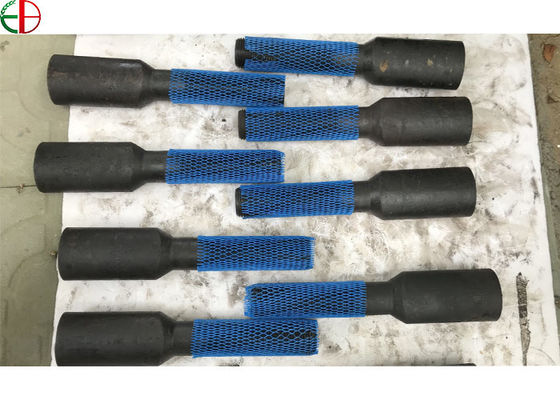

M36x3x280mm 35CrMo 12.9 Level High Pressure Bolt Connector for Shell Plate EB699

MOQ: 10 sets
Price: USD0.5/set ~ USD20/set
Standard Packaging: Plywood Case
Delivery Period: It depends on the quantity to be ordered.
Payment Method: by T/T or L/C, Western Union
Supply Capacity: 100,000,000.00 sets per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Eternal Bliss
Certification
ISO9001-2008
Model Number
EB699
Product Name:
High Pressure Bolt Connector
Material:
35 CrMo
Grade:
Grade 12.9
Size:
M36x3x280mm
Process:
Forging Process
Application:
Column Connection
Highlight:

chrome plated hardware

,

heavy hex bolt

Product Description



M36x3x280mm 35CrMo 12.9 Level High Pressure Bolt Connector for Shell Plate EB699





M36x3x280mm 35CrMo 12.9 Level High Pressure Bolt Connector for Shell Plate EB699



1. Material Grade:45 Steel,40 Cr,A173,H7,A3 Steel,SS304,SS301S,SS316L



2. Grade:4.8,6.8,8.8,10.9,12.9



3. Sizes:M36x3x280mm



4. Specification:M10,M12,M14,M16,M20,M22,M24,M27,M30,M33,M36,M42,M48,M52,M56,M60,M64,M68,

M72,M76,M80



5. Bolt-head Shape:Oval Head,Square Head



6. Application:Industrial Machinary



7. Chemical Composition:



Grade   Standard C Si Mn P S Ni Cu Cr Mo
20CrMo   GB/T 0.17-0.24 0.17-0.37 0.400.70 ≤0.035 ≤0.035 ≤0.30 ≤0.30 0.80-1.10 0.15-0.25
30CrMo   GB/T 0.26-0.34 0.17-0.37 0.400.70 ≤0.035 ≤0.035 ≤0.30 ≤0.30 0.80-1.10 0.15-0.25
35CrMo   GB/T 0.32-0.40 0.17-0.37 0.40-0.70 ≤0.035 ≤0.035 ≤0.30 ≤0.30 0.80-1.10 0.15-0.25
42CrMo   GB/T 0.38-0.45 0.17-0.37 0.50-0.80 ≤0.035 ≤0.035 ≤0.30 ≤0.30 0.9-1.2 0.15-0.25



8. Special Features:



(1).The high strength bolts have been widely used in large SAG mills up to dia.12-meter mills.

(2).The high strength screws have been reliably used in small,middle and large cement mills,coal mills and mine mills.

(3).The high strength bolts are properly heat-treated to achieve better mechanical properties.

(4).The standard bolt units include one rubber ring,concave washer,spring washer and self-fastened nut.



9. Our Video for M36x3x280mm 35CrMo 12.9 Level High Pressure Bolt Connector for Shell Plate:



M36x3x280mm 35CrMo 12.9 Level High Pressure Bolt Connector for Shell Plate EB699
Tags:

mill liner bolts,

Titanium Bolt,

high tensile bolts
