ISO9001 Casting Heat Resistant Jigs For Furnace Stove

ISO9001 Casting Heat Resistant Jigs For Furnace Stove
ISO9001 Casting Heat Resistant Jigs For Furnace Stove
Brand Name
Eternal Bliss
PRODUCT MODEL
EB3121
certificate
ISO9001-2008
country of origin
China
MOQ
50 Kilogram/Kilograms
unit price
USD5~16/kg
payment method
by T/T or L/C
Supply Capacity
5000 tons per year
Product Summary
Widely Used Superior Quality Fashion Heat Resistant Jigs Charging Carrier Castings Introduction: We supply finished heat steel parts,such as furnace grates,furnace bed plates for cement works,steel mills. We can produce heat casting with heat-treated and machined condition if necessary. Application...
Product Details
Highlight:

casting Heat Resistant Jigs

,

Heat treatment Heat Resistant Jigs

,

ISO9001 Heat Resistant casting

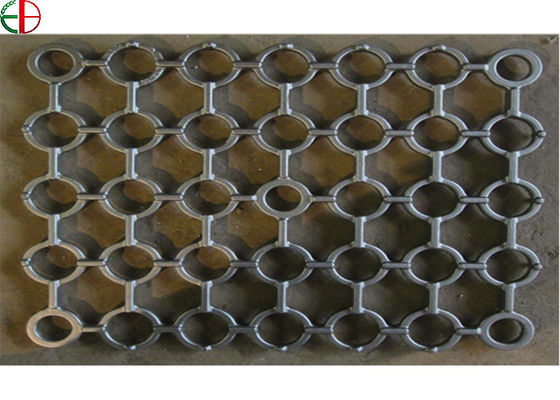

Product Name: Heat-treatment Furnace Wire Mesh Basket
Material Grade: 1.4849
Process: Resin Sand Casting,Centrifugal Cast,Investment Cast
Working Temperature: Up To 1300℃
Size: Customized Size
Quality Control: 100% Inspected

Product Description

Widely Used Superior Quality Fashion Heat Resistant Jigs Charging Carrier Castings



ISO9001 Casting Heat Resistant Jigs For Furnace Stove



Introduction:

We supply finished heat steel parts,such as furnace grates,furnace bed plates for cement works,steel mills.
We can produce heat casting with heat-treated and machined condition if necessary.
Application:Auto,Precision Gear,Heat-treating industries.


Features:
1. Resistance to high temperature:Up to 1300℃;
2. A large number of Existing Patterns of fixture for Standard.Famous Brand Heat-treatment Furnaces.
3. Rich experience in design of Trays&Baskets to suit the secific work condition.
4. More production process available:Wax lost cast process,EPC cast process,Sand cast process.
Quality Level: As per National Standard & International Standards.
Production Process:Wax lost process,investment process,EPC process&sand process.



GB DIN ASTM JIS Chemical Composition Maximum operation
C Si Mn Cr Ni Nb/Cb Mo Other
ZG40Cr27Ni4 1.4823 HD SCH11 0.30-0.50 ≤2.00 ≤1.00 24.00-28.00 4.00-6.00 – ≤0.50   1050 ℃
ZG40Cr22Ni10 1.4826 HF SCH12 0.30-0.50 1.00-2.50 ≤2.00 19.00-23.00 8.00-12.00 – ≤0.50   950℃
zG30Cr28N10   HE SCH17 0.20-0.50 ≤2.00 ≤2.00 26.00-30.00 8.00-11.00 – –   1050℃
ZG40Cr25Ni12 1.4837 HH SCH13 0.30-0.50 1.00-2.50 ≤2.00 24.00-27.00 11.00-14.00 – ≤0.50   1050℃
ZG30Cr28Ni16   HI SCH18 0.20-0.50 ≤2.00 ≤2.00 26.00-30.00 14.00-18.00 – –   1100℃
ZG40Cr25Ni20Si2 1.4848 HK SCH21 0.30-0.50 ≤1.75 ≤1.50 23.00-27.00 19.00-22.00 – ≤0.50   1100℃
ZG30Cr20Ni25   HN SCH19 0.20-0.50 ≤2.00 ≤2.00 19.00-23.00 23.00-27.00 – –   1100℃
ZG40Cr19Ni39 1.4865 HU SCH20 0.35-0.75 ≤2.50 ≤2.00 17.00-21.00 37.00-41.00 – –   1020℃
ZG40Cr15Ni35 1.4806 HT SCH15 0.35-0.70 ≤2.00 ≤2.00 15.00-19.00 33.00-37.00 – ≤0.50   1000℃
ZG40Cr25Ni35Nb 1.4852 HPCb SCH24Nb 0.30-0.50 ≤2.00 ≤2.00 24.00-28.00 33.00-37.00 0.8-1.8 ≤0.50   1100℃
ZG40Cr19Ni38Nb 1.4849     0.30-0.50 1.00-2.50 ≤2.00 18.00-21.00 36.00-39.00 1.2-1.8 ≤0.50   1020℃
ZG40Cr24Ni24Nb 1.4855     0.30-0.50 1.00-2.50 ≤2.00 23.00-25.00 23.00-25.00 0.8-1.8 ≤0.50   1050℃
ZG40Cr25Ni35 1.4857 HP SCH24 0.35-0.50 1.00-2.50 ≤2.00 24.00-28.00 33.00-37.00   ≤0.50   1100℃
ZG1Cr20Ni32Nb 1.4859     0.06-0.15 0.50-1.50 ≤2.00 19.00-21.00 31.00-33.00 0.5-1.5 ≤0.50   1050℃
ZG45Cr12Ni60   HW   0.35-0.75 ≤2.00 ≤2.00 10.00-14.00 58.00-62.00       1100℃
ZG45Cr18Ni66       0.35-0.75 ≤2.00 ≤2.00 15.00-19.00 64.00-68.00       1100℃
ZG1Cr28C050 2.4778 HX   0.05-0.25 0.50-1.00 ≤1.50 27.00-30.00 ≤1.00 ≤0.50 ≤0.50 Co:48.0-52.0 1200℃
ZG30Cr28Co50Nb 2.4779     0.25-0.35 0.50-1.50 0.50-1.50 27.00-29.00 – 1.50-2.50 ≤0.50 Co:48.0-52.0 1200℃
ZG40Cr28Ni48W5 2.4879   SCH42 0.35-0.55 1.00-2.00 ≤1.50 27.00-30.00 47.00-50.00 – ≤0.50 W:4.0-5.5 1150℃



Product Details:



ISO9001 Casting Heat Resistant Jigs For Furnace StoveISO9001 Casting Heat Resistant Jigs For Furnace Stove
