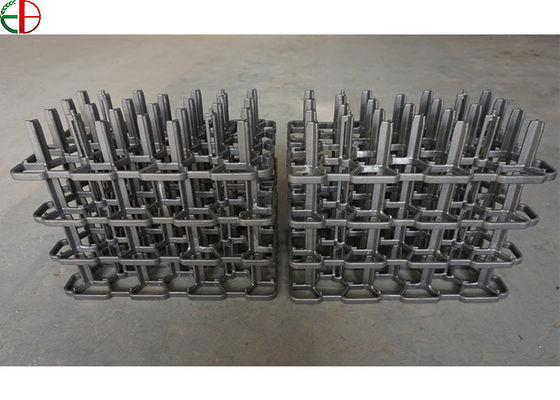

Centrifugal Cast Welding Stackable Heat Treatment Basket For Nitriding Furnace
Centrifugal Cast Welding Stackable Heat Treatment Basket For Nitriding Furnace
Centrifugal Cast Welding Stackable Heat Treatment Basket For Nitriding Furnace
Brand Name
Eternal Bliss
PRODUCT MODEL
EB3125
certificate
ISO9001-2008
country of origin
China
MOQ
50 Kilogram/Kilograms
unit price
USD5~16/kg
payment method
by T/T or L/C
Supply Capacity
5000 tons per year
Product Summary
Promotional Trend Heat Treatment Welding Stackable Basket For Nitriding Furnace Introduction: We supply finished heat steel parts,such as furnace grates,furnace bed plates for cement works,steel mills. We can produce heat casting with heat-treated and machined condition if necessary. Application...
Product Details
Highlight:
Centrifugal Cast Heat Treatment Basket
,Stackable Heat Treatment Basket
,Centrifugal Cast Welding Basket
Product Name:
Heat-treatment Furnace Wire Mesh Basket
Material Grade:
1.4849
Process:
Resin Sand Casting,Centrifugal Cast,Investment Cast
Working Temperature:
Up To 1300℃
Size:
Customized Size
Quality Control:
100% Inspected
Product Description
Promotional Trend Heat Treatment Welding Stackable Basket For Nitriding Furnace
Introduction:
We supply finished heat steel parts,such as furnace grates,furnace bed plates for cement works,steel mills.
We can produce heat casting with heat-treated and machined condition if necessary.
Application:Auto,Precision Gear,Heat-treating industries.
Features:
1. Resistance to high temperature:Up to 1300℃;
2. A large number of Existing Patterns of fixture for Standard.Famous Brand Heat-treatment Furnaces.
3. Rich experience in design of Trays&Baskets to suit the secific work condition.
4. More production process available:Wax lost cast process,EPC cast process,Sand cast process.
Quality Level: As per National Standard & International Standards.
Production Process:Wax lost process,investment process,EPC process&sand process.
| GB | DIN | ASTM | JIS | Chemical Composition | Maximum operation | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | |||||
| ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30-0.50 | ≤2.00 | ≤1.00 | 24.00-28.00 | 4.00-6.00 | – | ≤0.50 | 1050 ℃ | |
| ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30-0.50 | 1.00-2.50 | ≤2.00 | 19.00-23.00 | 8.00-12.00 | – | ≤0.50 | 950℃ | |
| zG30Cr28N10 | HE | SCH17 | 0.20-0.50 | ≤2.00 | ≤2.00 | 26.00-30.00 | 8.00-11.00 | – | – | 1050℃ | ||
| ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30-0.50 | 1.00-2.50 | ≤2.00 | 24.00-27.00 | 11.00-14.00 | – | ≤0.50 | 1050℃ | |
| ZG30Cr28Ni16 | HI | SCH18 | 0.20-0.50 | ≤2.00 | ≤2.00 | 26.00-30.00 | 14.00-18.00 | – | – | 1100℃ | ||
| ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30-0.50 | ≤1.75 | ≤1.50 | 23.00-27.00 | 19.00-22.00 | – | ≤0.50 | 1100℃ | |
| ZG30Cr20Ni25 | HN | SCH19 | 0.20-0.50 | ≤2.00 | ≤2.00 | 19.00-23.00 | 23.00-27.00 | – | – | 1100℃ | ||
| ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35-0.75 | ≤2.50 | ≤2.00 | 17.00-21.00 | 37.00-41.00 | – | – | 1020℃ | |
| ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35-0.70 | ≤2.00 | ≤2.00 | 15.00-19.00 | 33.00-37.00 | – | ≤0.50 | 1000℃ | |
| ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30-0.50 | ≤2.00 | ≤2.00 | 24.00-28.00 | 33.00-37.00 | 0.8-1.8 | ≤0.50 | 1100℃ | |
| ZG40Cr19Ni38Nb | 1.4849 | 0.30-0.50 | 1.00-2.50 | ≤2.00 | 18.00-21.00 | 36.00-39.00 | 1.2-1.8 | ≤0.50 | 1020℃ | |||
| ZG40Cr24Ni24Nb | 1.4855 | 0.30-0.50 | 1.00-2.50 | ≤2.00 | 23.00-25.00 | 23.00-25.00 | 0.8-1.8 | ≤0.50 | 1050℃ | |||
| ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35-0.50 | 1.00-2.50 | ≤2.00 | 24.00-28.00 | 33.00-37.00 | ≤0.50 | 1100℃ | ||
| ZG1Cr20Ni32Nb | 1.4859 | 0.06-0.15 | 0.50-1.50 | ≤2.00 | 19.00-21.00 | 31.00-33.00 | 0.5-1.5 | ≤0.50 | 1050℃ | |||
| ZG45Cr12Ni60 | HW | 0.35-0.75 | ≤2.00 | ≤2.00 | 10.00-14.00 | 58.00-62.00 | 1100℃ | |||||
| ZG45Cr18Ni66 | 0.35-0.75 | ≤2.00 | ≤2.00 | 15.00-19.00 | 64.00-68.00 | 1100℃ | ||||||
| ZG1Cr28C050 | 2.4778 | HX | 0.05-0.25 | 0.50-1.00 | ≤1.50 | 27.00-30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0-52.0 | 1200℃ | |
| ZG30Cr28Co50Nb | 2.4779 | 0.25-0.35 | 0.50-1.50 | 0.50-1.50 | 27.00-29.00 | – | 1.50-2.50 | ≤0.50 | Co:48.0-52.0 | 1200℃ | ||
| ZG40Cr28Ni48W5 | 2.4879 | SCH42 | 0.35-0.55 | 1.00-2.00 | ≤1.50 | 27.00-30.00 | 47.00-50.00 | – | ≤0.50 | W:4.0-5.5 | 1150℃ | |
