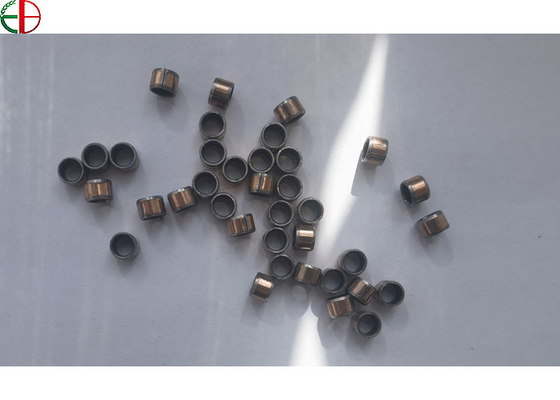

Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing

Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing
Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing

Large Image :  Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB2031
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: $0.05 - $3.00/ Piece
Packaging Details: Plywood Case: 1500 x 1000 x 1000mm (Max.) 20 feet container: 25 tons (Max.)
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C, Western Union
Supply Ability: 100,000.00
Detailed Product Description
Product Name: Brass Bushing Material: Brass/ Bronze
Bushing Types: Straight/Flanged Type: Sleeve, Bearing Sleeve
Feature: High Load Capability,Low Weight , Good Corrosion Resistance. Dimensions: As Per Your Drawing
High Light:

Bimetal Bushing Bearing

,

Steel Sleeve Bushing

,

Customized Stable Bushes



Customized High Quality Stable Bushes Bimetal Bushing Bearing Steel Sleeve bushing Bronze Bushing



Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing 0



1. Name:Sintered Bronze Bushing



2. Materials: Brass/ Bronze





Specification:
MATERIAL Bronze;Fe-Cu; MPIF standard F-0000-K23 ; FC-0200 ; FG-0303 SERIES
WORKING TEMPERATURE: -40ºC ~ +200ºC
DENSITY & GRAVITY: 6.4-7.3g/cm3
OIL IMPREGNATION RATE: 15% - 23%
GRAPHITE CONTENT RATE: 1% - 3%Max
SLIDING SPEED: 6.0 [m/s]
LOAD CAPACITY STATIC: 10 N/mm2
MAXIMUM PV VALUE: 1.6 N/mm2•m/s
LOAD CAPACITY DYNAMIC: 5 N/mm2
WORKING SPEED: 2.5 m/s
TYPE OF SHAPE: Cyclinder ; Flange ;Spherecial (with Ring)
FOR LOAD DIRECTION: Radial , Thrust, Combined Radial and Thrust
YIELD STRENGTH: 15000 PSI
SHAFT MOUNT TYPE: Press Fit





Taper Bushings
(Metric Bore)
Taper Bushings
(Inch Bore)
NO. Bore Range NO. Bore Range
MIN. MAX. MIN. MAX.
1008 9 25 1008 3/8 1
1108 9 28 1108 3/8 1 1/8
1210 11 32 1210 1/2 1 1/4
1215 11 32 1215 5/8 1 1/4
1310 14 35 1310 1/2 1 3/8
1610 14 42 1610 1/2 1 5/8
1615 14 42 1615 1/2 1 5/8
2012 14 50 2012 5/8 2
2017 18 50 2017 3/4 2
2517 16 60 2517 3/4 2 1/2
2525 18 60 2525 7/8 2 1/2
3020 25 75 3020 1 1/4 3
3030 35 75 3030 1 1/4 3
3525 35 90 3525 1 1/2 3 1/2
3535 35 90 3535 1 1/2 3 1/2
4030 40 100 4030 1 3/4 4
4040 40 100 4040 1 3/4 4
4535 55 110 4535 2 1/4 4 1/2
4545 55 110 4545 2 1/4 4 1/2
5040 70 125 5040 2 3/4 4 1/2
5050 70 125 5050 3 5



QD Bushings
NO. WEIGHT
(KG)
Bore Range
Min. Max.
JA 0.36 3/8 1 1/4
SH 0.45 1/2 1 11/16
SDS 0.54 1/2 2
SD 0.68 1/2 2
SK 0.91 1/2 2 5/8
SF 1.59 1/2 2 15/16
E 4.08 7/8 3 1/2




3. Product Details Picture:



Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing 1Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing 2Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing 3Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing 4
