| MOQ: | 5 Kilogram/Kilograms |
| Price: | $90.00 - $100.00/ Kilogram |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | By T/T or L/C |
| Supply Capacity: | 10000 Tons Per Year |

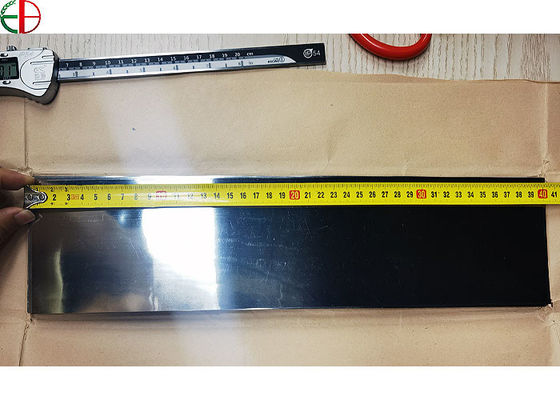

Pure Molybdenum Foil Thickness 0.1mm
1.Appearance:the surface is smooth, level , and has no defects such as double skin,divide layer,crackle,splitting .
2. The product which thickness is less than 1mm is supplied with the cold-rolled or cleaning surface state.
3 .Purity: Pure molybdenum Mo≥ 99.93%
4.Density: ≥ 10.10g/cm³
5.Dimension: Thin slice (0.02-1)×(50-600)×L (mm)
6.Thickness, width and length deviation may be produced according to the GB3562-2007 standard. Special specification can be decided through the consultation by both parties.
7.Main applications: This product is suitable for light, LEDindustry, electric vacuum device, electric semiconductor device, glass fiber kiln heating element, heat shield, and molybdenum boat ,etc. Molybdenum plate and molybdenum sheet of TZM series can be used as the radiation resisting shielding material, high-temperature stove structural material, etc.
|
Chemical Composition and Physical Properties
|
|
|
Product Name
|
Molybdenum Foil
|
|
Tensile Strength
|
610 Mpa
|
|
Elongation
|
≥10%
|
|
Purity
|
≥99.95%,≥99.97%,
|
|
Size
|
TK 0.1~80mm*W 10~700mm*L 30~3000mm
|
|
Use Temperature
|
1800°C
|
|
Highest Temperature
|
2200°C
|
|
Quantitative Analysis
|
|||||||||
|
Element
|
Ni
|
Mg
|
Fe
|
Pb
|
Al
|
Bi
|
Si
|
Cd
|
Ca
|
|
Concentration(%)
|
0.003
|
0.002
|
0.005
|
0.0001
|
0.002
|
0.0001
|
0.002
|
0.0001
|
0.002
|
|
Element
|
C
|
O
|
N
|
Sb
|
Sn
|
|
|
|
|
|
Concentration(%)
|
0.01
|
0.003
|
0.003
|
0.0005
|
0.0001
|
|
|
|
|
|
Purity(Metallic Base) Mo≥99.95%
|
|||||||||
Product Details:
