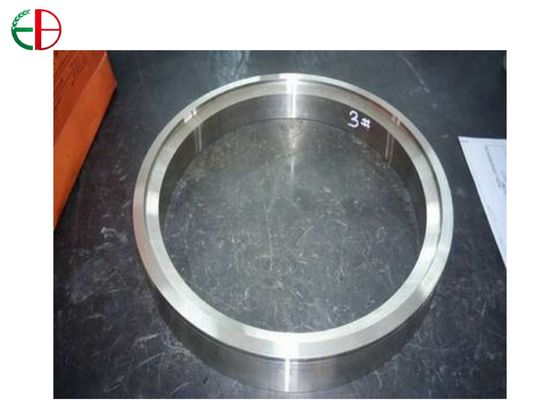

Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings

Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings
Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings

Large Image :  Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings

Product Details:
Place of Origin: China
Brand Name: Eternal Bliss
Certification: ISO9001-2008
Model Number: EB25010
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: USD13/kg ~ USD85/kg
Packaging Details: Pallets
Delivery Time: It depends on the quantity to be ordered.
Payment Terms: by T/T or L/C, Western Union
Supply Ability: 100,000,000.00
Detailed Product Description
Material Grade: ASTM A494 CZ100 Cast Process: Wax Lost Process
Surface Finish: Ra 6.3 Surface Treatment: Shot Blast
Size Tolerance: CT8 Certificate: ISO9001
High Light:

nickel based castings

,

nickel based alloys

ASTM A494 CZ100 Pure Ni Alloy Valve Seat Ring High Temperature Anti-Corrosive Castings EB25010

Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings 0

Special Features:

1. Good surface finish;

2. We use Precision Cast Process to produce the Plugmill Mixer Blade Parts

with white Iron materials;

3. We do quenching & tempering treatment to achieve better wear performance.



Quality Level: As per National Standard & International Standards.

Sizes available: as per drawings



Application Field: Mining Industry, Valve and Pump Industry,Heat-treatment Industry, Metallurgical Industry, Cement Industry,Power plants, Oil, Gas Industry.

Material Grade:



Metal No: Chemical Compostion(W%)
C Si Cr Mo Mn Fe Cu Ti Ai Ni
Ni200Z 1.00 2.00 -- -- 1.50 3.00 1.25 -- -- Bal
Ni202Z 0.15 3.30 -- -- -- -- -- B2.3 -- Bal
Ni205Z 0.12 1.00 16.50 17.00 1.00 6.50 -- W:4.50 V:0.30 Bal
Ni206Z 0.12 1.00 1.00 28.00 1.00 5.00 -- -- V:0.40 Bal
Ni207Z-NZ -- 1.20 25.00 11.00 -- -- -- -- -- Bal
Ni219Z -- -- 12.70 9.00 -- -- Be
2.0
0.4 2 Bal
Ni222Z -- 0.50 22.00 13.00 0.70 4.00   -- -- Bal
Ni230 0.30 1.50 -- -- 1.50 3.50 30.00 Nb:2.00 -- Bal
Ni235 0.35 2.00 -- -- 1.50 3.50 30.00 Nb:0.50 -- Bal
Ni240Z 0.35 1.25 -- -- 1.50 3.50 29.50 Nb:0.50 -- Bal
Ni250Z 0.12 0.30 -- -- 1.50 2.00 27-33 0.60 3.00 68.00
Ni255 0.05 0.50 12.50 3.00 1.50 1.70 bi:4.00 sn:4.00 -- Bal
Ni260Z 0.40 3.00 15.5 -- 1.50 11.00 -- -- -- Bal
Ni262Z 0.06 1.00 21.5 9.5 1.00 5.00 -- Nb:4.00 -- Bal
Ni264 0.03 -- 60.00 -- -- 0.40 -- -- -- Bal
Ni274Z 0.02 0.80 16.00 16.5 1.00 2.00 -- W:1.00 -- Bal
Ni278Z 0.08 0.35 19.00 3.00 0.35 Bal 0.30
Co:1.00
0.90
Nb:5.00
0.60 53.00



Production Process

Step 1: Getting orders.



Step 2: Process design by technical department



Step 3: Purchase of raw materials and pattern making &checking



Step 4: Inspection of raw materials



Step 5: Melting by middle-frequency induction furnaces



Step 6: Ladle analysis by Spectrometer



Step 7: De-oxidization, slag-removal, tapping



Step 8: Pouring



Step 9: Openning & fettling



Step 10: Surface & dimensional check



Step 11: Heat treatment



Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)



Step 13: Packing



Step 14: Shipping



Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings 1

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.





Our Trade Show Pure Ni Alloy Valve Seat Ring , High Temp Metals Anti Corrosive Castings 2



Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.
