| MOQ: | 500kg |
| Price: | USD2~USD3/kg |
| Standard Packaging: | Pallets |
| Delivery Period: | It depends on the quantity to be ordered. |
| Payment Method: | by T/T or L/C, Western Union |
| Supply Capacity: | 20,000 tons per year |
Ductile iron is a family of cast graphitic irons possessing high strength, resistance to shock and ductility. Annealed cast ductile iron resists fracture even when it is being bent, twisted or deformed. Its strength, toughness and ductility greatly exceed that of standard gray irons and its properties are very similar to many grades of steel. Additionally Ductile Iron has a lower cost of casting procedure compared to steel; as well as the advantage of design flexibility.
Outstanding Features:
1.We use Spetrometer to control the chemlcal elements；
2.We check the matrix with our mlcroscope;

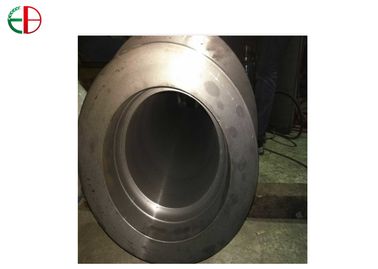

3.We can do fully machining on the sleeve parts.
4.We adopt Centrifugal Cast process with higher efficiency to shortening the process time;
5.Production Process: centrifugal cast process + machining process
7.We can make the cast sleeves as per customer design.
8.Diameter: 50mm - 500mm; Length: less than 400mm.
9.Material grades:
Chemistry standard for Ductile Iron Castings;
| S/N | C | Si | Mn | S | P | Mg | Re |
| QT400-18 | 3.6-3.8 | 2.3-2.7 | ≤0.5 | ≤0.05 | ≤0.03 | 0.03-0.05 | 0.02-0.03 |
| QT500-7 | 3.4-3.9 | 2.0-2.9 | ≤0.6 | ≤0.03 | ≤0.05 | 0.03-0.10 | 0.03-0.10 |
| QT600-3 | 3.4-3.8 | 2.0-2.8 | 0.3-0.7 | ≤0.03 | ≤0.05 | 0.035-0.05 | 0.025-0.045 |
| QT700-2 | 3.5-4.0 | 2.30-2.6 | 0.5-0.9 | ≤0.03 | ≤0.05 | 0.035-0.065 | 0.035-0.065 |
Material Grade for Gray Iron:
Production Process
Step 1: Getting orders.
Step 2: Process design by technical department
Step 3: Purchase of raw materials and pattern making &checking
Step 4: Inspection of raw materials
Step 5: Melting by middle-frequency induction furnaces
Step 6: Ladle analysis by Spectrometer
Step 7: De-oxidization, slag-removal, tapping
Step 8: Pouring
Step 9: Openning & fettling
Step 10: Surface & dimensional check
Step 11: Heat treatment
Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)
Step 13: Packing
Step 14: Shipping
1. 16-year Foundry Operation Experience.
2. Friendly & High Efficient Technical & Commercial Communication.
3. Professional Export Practices: Have Exported to +60 Overseas Countries.
Our Trade Show
Our booth No. 14-A29-5 in Newcast 2015,Germany
Hall 14, Stand No.A29-5.
Contact Us for further information about products & service:
Mr.John Liu
Project Manager
Tel: 0086-188 0059 6372
Fax: 0086-510-6879 2172
E-mail:cast@ebcastings.com ebcasting@126.com
Skype ID:julia.zhu26
QQ: 217 039 6403
What's app: 0086-130 930 23772
Eternal Bliss Alloy Casting & Forging Co.,LTD.
Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
Our Inspection Video:
|
|
